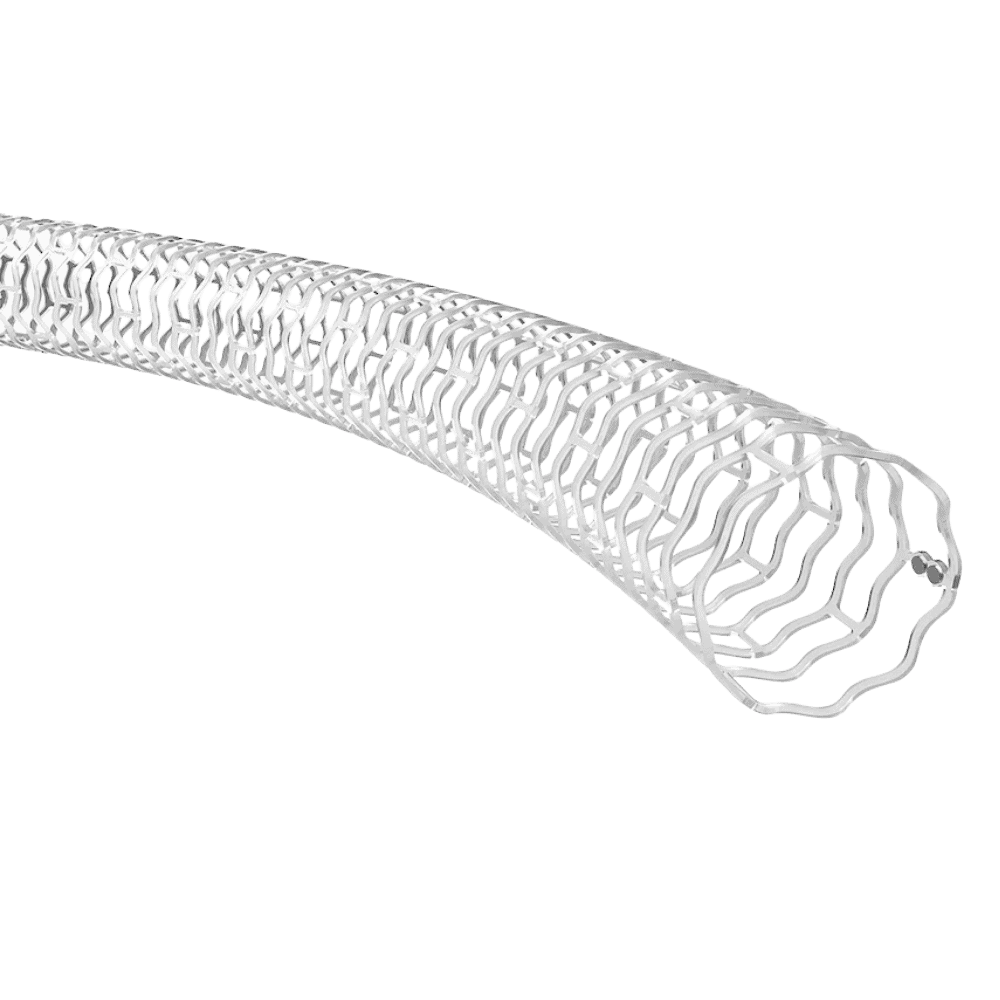

Abbott Esprit Peripheral Scaffold

Take a stand against Chronic Limb-Threatening Ischemia (CLTI) for your patients.

Choose the new standard of care for BTK treatment that delivers superior results without compromising safety.

Vertical Integration:
End-to-end control of design, manufacturing and distribution of our healthcare devices and supplies

Supply Chain Reliability:
A robust network with 4 distribution centres ensures reliable operation and inventory security.

Regulatory Expertise:
We follow North American compliance
and clinical standards.

The Challenge:

Conventional BTK therapies such as plain balloon angioplasty, drug-coated balloons, and permanent metallic stents are associated with elastic recoil, restenosis, fracture risk, and long-term foreign body presence—factors that compromise durability in fragile infrapopliteal vessels

The Solution:

The Esprit™ BTK resorbable scaffold delivers temporary mechanical support to maintain vessel patency during healing, then fully resorbs, leaving no permanent implant behind and preserving future treatment options

Frequently Asked Questions

Review answers to common questions regarding our product lines, distribution network, and regulatory compliance.

Contact Us
  • PTA avoids permanent implants, but it also has high acute recoil and dissection rates, especially in BTK lesions with calcification or long disease. This often leads to:

    • Suboptimal acute luminal gain
    • Early restenosis
    • Bailout stenting


    Esprit provides temporary mechanical scaffolding to stabilize the vessel during healing and then fully resorbs, restoring vessel compliance and physiology. This gives you better early lumen durability than PTA, without the long-term penalty of a permanent implant.

  • Bare-metal stents leave a permanent rigid cage, which:

    • Disrupts natural vessel motion
    • Promotes chronic inflammation
    • Increases neointimal hyperplasia



    Esprit delivers controlled drug elution (anti-proliferative therapy) during the highest restenosis risk period and then disappears, eliminating the long-term inflammatory stimulus. This combination targets restenosis both biologically and mechanically, unlike BMS which address neither optimally over time.

  • No—this is actually one of Esprit’s strongest advantages.

    With bare-metal stents, future options are constrained by:

    • Metal layers
    • Difficult re-crossing
    • Limited surgical targets


    Because Esprit fully resorbs, it preserves:


    • Future endovascular access
    • Surgical bypass options
    • Repeat PTA or DCB use



    This is particularly important in CLTI patients, where disease progression and repeat interventions are expected.

  • Esprit is engineered to provide sufficient radial strength during the critical healing window, then gradually resorb once the vessel has remodeled. Unlike early-generation scaffolds in other vascular beds, Esprit’s design is BTK-specific, accounting for:

    • Smaller vessel diameters
    • Lower flow states
    • Longer lesion lengths



    Clinical data to date show no signal of excess acute thrombosis when used per IFU and with standard antiplatelet therapy.

  • Bare-metal stents permanently alter vessel compliance and can compromise bypass targets. Esprit restores vessel patency during healing and then leaves no metal behind, preserving distal targets and avoiding chronic inflammatory stimulus—key in CLTI patients with long life-time disease burden.

  • Esprit is designed to maintain radial strength through the biologically critical remodeling phase, then resorb after the vessel has stabilized. This avoids both early recoil and late chronic injury, which are common failure points for PTA and BMS respectively.

Product Technical Specifications

Contact Us

Materials

Bioresorbable polymer scaffold

Drug-eluting formulation: Everolimus

Compatibility

Abbott Stealth Atherectomy

Prostyle Vessel Closure

Care & handling instructions and storage conditions

Esprit BTK™ System is shipped using temperature-controlled packaging

  • Collect the devices from shipping andreceive themas soon as possible
  • Receiving docks are often not temperature controlled – Minimize time on the loading dock to reduce riskofThermoAlert triggers

Must be stored at 25°C or below. Not lower than 4°C

Shelf life

2 Years

Dimensions/Sizes

Sizes 18 mm 28 mm 38 mm Sheath (F) Maximum Post-Dilation Diameter Nominal / RBP Inflation Pressure
2.5 mm 1203250-18 1203250-28 1203250-38 5F (0.070″ / 1.8 mm) 3.0 mm 9/16 ATM
3.0 mm 1203300-18 1203300-28 1203300-38 5F (0.070″ / 1.8 mm) 3.5 mm 9/16 ATM
3.5 mm 1203350-18 1203350-28 1203350-38 5F (0.070″ / 1.8 mm) 4.0 mm 9/16 ATM
3.75 mm 1203375-18 1203375-28 1203375-38 5F (0.070″ / 1.8 mm) 4.25 mm 9/16 ATM

Ordering Information

Request a Quote
Item Codes  Description  Packaging (i.e. 10 EA/BX, 10BX/CA)
1203250-18  Esprit™ BTK Everolimus Eluting Resorbable Scaffold System 2.50mm x 18mm Rapid-Exchange   1 EA/BX
1203250-28  Esprit™ BTK Everolimus Eluting Resorbable Scaffold System 2.50mm x 28mm Rapid-Exchange  1 EA/BX
1203250-38  Esprit™ BTK Everolimus Eluting Resorbable Scaffold System 2.50mm x 38mm Rapid-Exchange  1 EA/BX
1203300-18  Esprit™ BTK Everolimus Eluting Resorbable Scaffold System 3.00mm x 18mm Rapid-Exchange  1 EA/BX
1203300-28  Esprit™ BTK Everolimus Eluting Resorbable Scaffold System 3.00mm x 28mm Rapid-Exchange   1 EA/BX
1203300-38  Esprit™ BTK Everolimus Eluting Resorbable Scaffold System 3.00mm x 38mm Rapid-Exchange  1 EA/BX
1203350-18  Esprit™ BTK Everolimus Eluting Resorbable Scaffold System 3.50mm x 18mm Rapid-Exchange  1 EA/BX
1203350-28  Esprit™ BTK Everolimus Eluting Resorbable Scaffold System 3.50mm x 28mm Rapid-Exchange  1 EA/BX
1203350-38  Esprit™ BTK Everolimus Eluting Resorbable Scaffold System 3.50mm x 38mm Rapid-Exchange   1 EA/BX
1203375-18  Esprit™ BTK Everolimus Eluting Resorbable Scaffold System 3.75mm x 18mm Rapid-Exchange  1 EA/BX
1203375-28  Esprit™ BTK Everolimus Eluting Resorbable Scaffold System 3.75mm x 28mm Rapid-Exchange  1 EA/BX
1203375-38  Esprit™ BTK Everolimus Eluting Resorbable Scaffold System 3.75mm x 38mm Rapid-Exchange   1 EA/BX
